MULTIDWELL – Digital Dwell Time Display Unit

MULTIDWELL Digital Dwell Time Display Units

The Multidwell, an extension to the Multicount family, is a cost effective digital display unit.
User programmable to display a variety of speed/time units.
Ideal as Bake time or oven timer display.

A multifunction display unit which can be end user programmed to indicate 1:1 Speed, or adjustable Time intervals. The unit incorporates a red LED display with auto decimal point, in a DIN 96x48mm enclosure (panel cut-out size: 92x44mm). Unit can display time in either Min/Sec analogue or Min/Sec Digital (Decimal) ie: 1min 15 sec or 1.25 min.



Data/Specifications

Supply110/230V ac
Consumption3VA
Sensor SupplyProvided: 12N dc smoothed. 60mA max.
Inputnpn or Volt free contact
Input Speed2,5KHz Max.
OutputNone
ProgrammingVia front panel pushbuttons
Memory Retention10 year memory of programme settings
ProtectionIP41
Weight400g

Dimensions

MSD100 dimensions

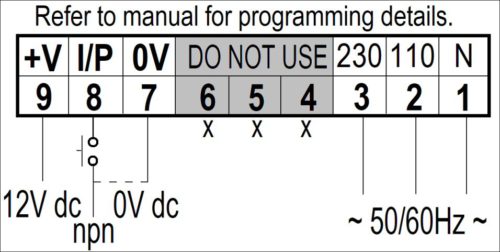

Connections

btd100-con
