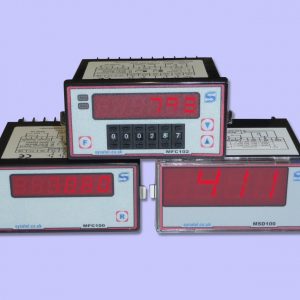

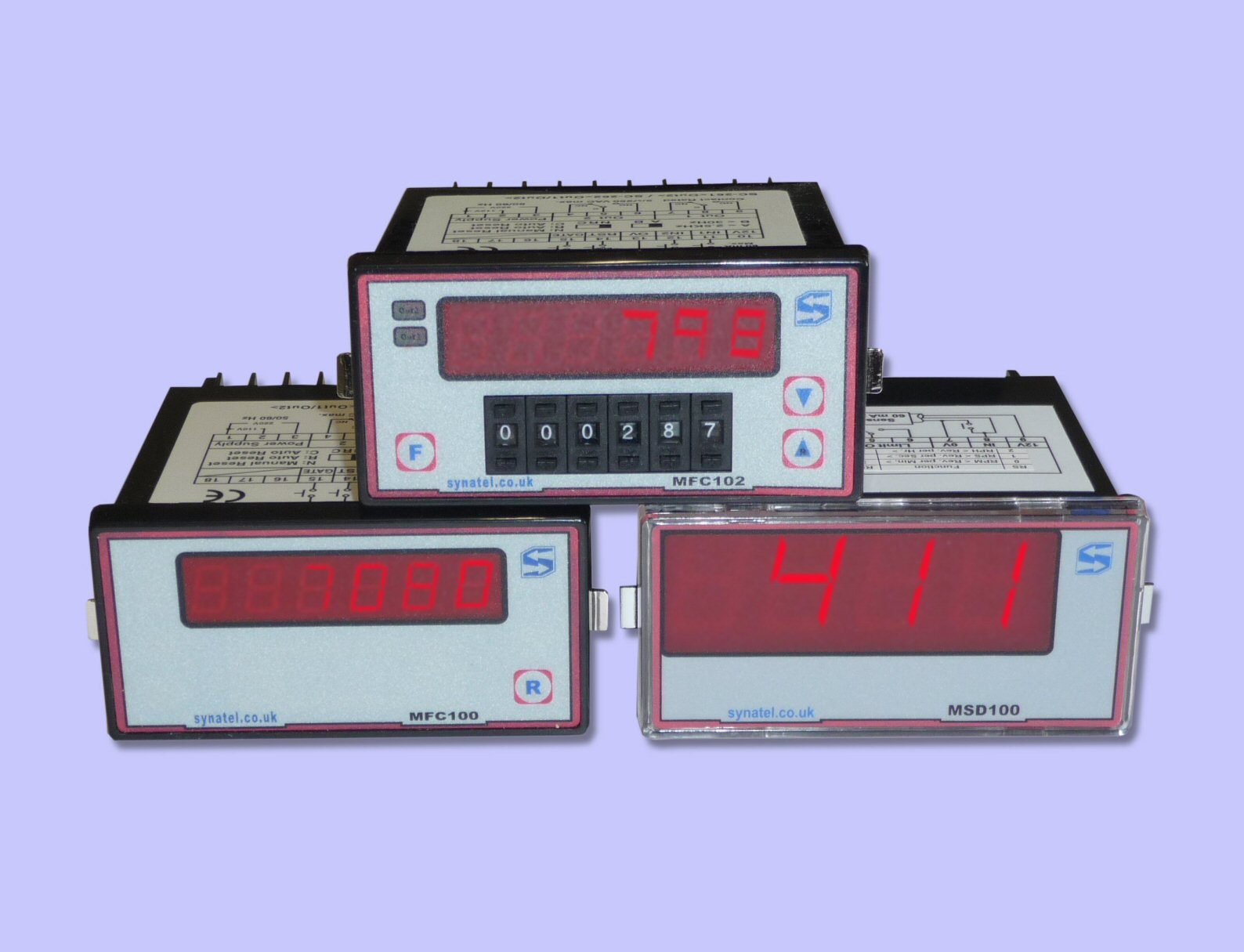

MULTICOUNT Digital Counter/Speed Display Units

MULTICOUNT Digital Counter/Speed Display Units
The Multicount counters and tachometer are a highly cost effective range of digital displays which can be user programmed for counting, batching, speed display or dwell/bake time indication. 48 x 96mm DIN enclosure. Auto, manual reset. Counter with thumbwheel settings, speed indicator has floating decimal point facility.

Data/Specifications

Supply110/230V ac
Consumption3VA
Sensor Supply12V dc smoothed, 60mA maximum
Inputnpn or volt free contact
Input Speed2.5Khz maximum
Output - MFC100None
Output - MFC1022 x SPCO relay rated @ 5A ac non-inductive
Output - MSD100SPCO relay rated @ 5A ac non-inductive (can be used for underspeed applications)
ProgrammingVia front panel push buttons, slide switches & rotary switches
Memory Retention10 year memory of programme settings
ConnectionScrew terminal on rear of unit
ProtectionIP41
Weight400g

Dimensions

MFC100
mfc100
MFC102

mfc102
MSD100

msd100

Connections

MFC100/MFC102

mfccon

MSD100
msdcon
