DIN Standard Limit Switch Style Inductive Proximity Sensor

DIN Standard Limit Switch Style Inductive Proximity Sensor
SYNATEL moulded DIN limit switch style housing (40x40mm) proximity sensors. Non-approved. Two versions are available:
ID/E1DO – 4 wire – 10-30V dc supply. Npn/pnp output
(selected by supply wires reversal) Normally de-energised (off). 30V 100mA max. 12mm range max.

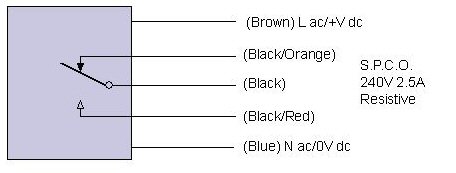

UD1DR – Moulded limit switch style housing. 5 wire – 12-240V dc/24-240V ac supply,
Relay output 3A 240V non-inductive max. Output normally de-energised (off). 12 mm range max.
Ideal for general use, such as replacing existing limit switches or target detection on rotating/reciprocating machinery.

	ID/E1DO	UD1DR
Supply	10-30V dc	12-240V dc 24-240V ac
Output State	Fully Opto-isolated transistor. Reverse & over-voltage protected npn/pnp configurable	SPCO Relay
Output Rating	30V dc 100mA max	2.5A 240V ac non-inductive max
Output State	User selectable D=off, E=0n	Normally OFF De-energised
Operating Range	12mm	12mm
Hysterisis	15% of operating range	15% of operating range
Ambient Temperature	-15°C to +50°C	-15°C to +50°C
IP Rating	IP65	IP65
Enclosure	Polyamide 66/6 Grade TVSO	Polyamide 66/6 Grade TVSO
Connections	4 cores, PVC, unscreened	5 core, PVC, unscreened
Weight	325g	325g

ID/E1DO

UD1DR

Supply

10-30V dc

12-240V dc
24-240V ac

Output State

Fully Opto-isolated transistor.
Reverse & over-voltage protected
npn/pnp configurable

SPCO Relay

Output Rating

30V dc 100mA max

2.5A 240V ac non-inductive max

Output State

User selectable
D=off, E=0n

Normally OFF
De-energised

Operating Range

12mm

Hysterisis

15% of operating range

Ambient Temperature

-15°C to +50°C

IP Rating

IP65

Enclosure

Polyamide 66/6 Grade TVSO

Connections

4 cores, PVC, unscreened

5 core, PVC, unscreened

Weight

325g
