SPEEDMASTER SSM1 Sensor Calibration Checker/programmer
(Audit)

SPEEDMASTER SSM1 Sensor Calibration Checker/programmer (Audit)
The SpeedMaster from SYNATEL is a test instrument designed to check the function and calibration of all types of SYNATEL speed monitors.
The system consists of the SpeedMaster SSM1 hand held instrument and PulsePilot PP1 transducer. By inserting the PulsePilot between the target and speed monitor, the actual shaft speed can be displayed. The unit can then override the signal from the target injecting a speed which can be reduced (or increased) in 1% steps to allow the actual trip speed of the sensor to be determined. The SpeedMaster can also be used to calibrate SYNATEL sensors to any desired speed if the automatically calibrated speed is not suitable. Speed/Switch Point Calibration Checker (Ideal for Calibration/Auditing).

Data/Specifications

SupplySSM1 - 4 x AA batteries. (Supplied). (PP1 powered by SSM1)
Speed Range10 - 3600 PPM (Pulses per Minute). (Accuracy: ±<0.5%)
Display5 digit, 7 segment green LED
Power ONPlug in Pulse Pilot PP1 and press 'ON' button
Power OFFSpeedMaster unit powers down automatically after 5 minutes if no buttons are pressed.
The unit can be turned off immediately by unplugging the Pulse Pilot PP1
EnclosureSSM1 - Moulded enclosure, gasketed with membrane keypad
PP1 - Glass fibre blade assembly & encapsulated end cap

Dimensions

speedmaster-dims

Connections

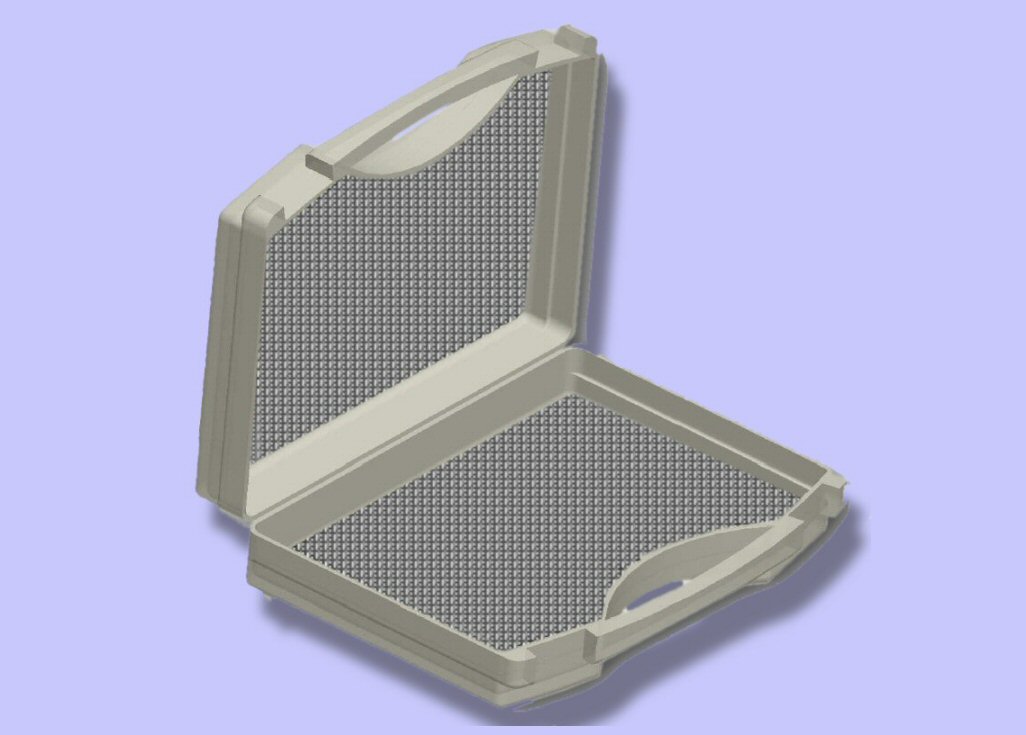

speedmaster-contents
